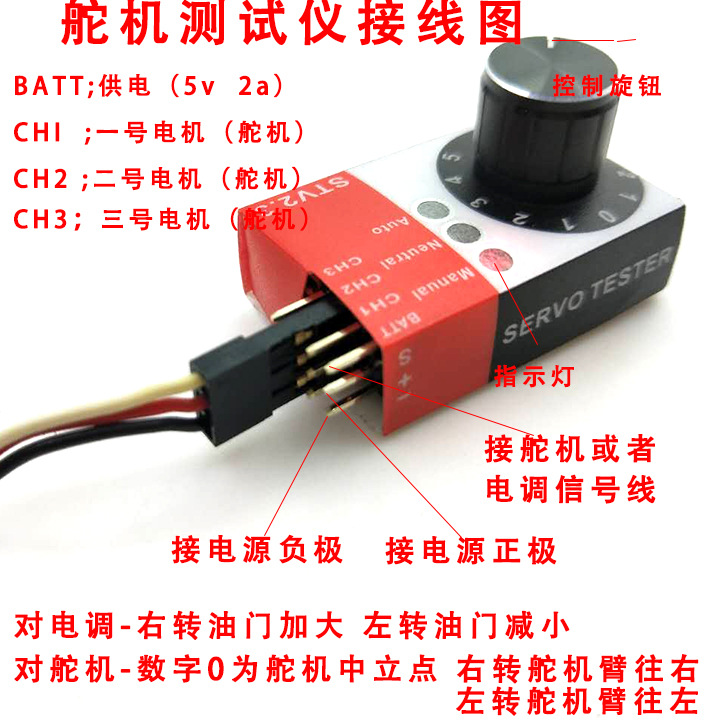

Product features: 1. Small size, low power consumption, high reliability, simple and convenient operation. 2. It is powered by four dry batteries, UBEC or ESC, with flexible power supply mode and wide adaptability. 3. The function setting is simple and practical, covering most of the parameters that the steering gear user needs to test. 4. Single chip microcomputer controls pulse output, with good stability and high precision. 5. Get rid of the remote control transceiver and test the steering gear and electric regulator. It is equivalent to a "manual receiver", which simulates the steering of the transmitter through the Inc or Dec key. Note: for the sake of safety, it's best to choose manual when testing electric regulation!! instructions: 1. When powered on, it will automatically enter the manual mode and reduce or increase the width of the output pulse by rotating the potentiometer. 2. Press the key to change the mode and enter neutral mode and automatic mode in turn. 3. Neutral mode, the output signal width is 1.5ms; In automatic mode, the output signal width changes smoothly back and forth from 1ms to 2ms. Technical parameters: Product specification: 1. Input voltage: DC 4.8v-6.0v 2. Output signal: 1.5ms ± 0.5ms 3. Size: 17.25 × thirty-two point two nine × 0.98mm 4. Weight: 3.8g 5. Working mode: manual, neutral, automatic Attachment: contain: 1 x STV2. 3 steering gear tester
