This product is sent as a standalone spare part and requires self DIY assembly.
Three axis drone parameters:
All carbon fiber body, alloy metal tripod.
All repair parts are available for sale, eliminating any worries for mold enthusiasts
Weight: 195G (including frame, tripod, steering gear, bearings)
Configuration:
QX-Motor 50 culvert, including motor QF2611-4000kV, 2 CCWs, 1 CWs
Three QX-MOTOR 40A electric regulators
1 tail wing dedicated servo
4s 14.8v 25C 5200mah LiPo (if you want to increase flight time, you can increase the battery capacity within the feasible range. The flight weight with batteries is about 900G)
The measured flight time is about 10 minutes
APM/Pixhawk 2.4.8 flight control optional
The rack contains a dedicated steering gear

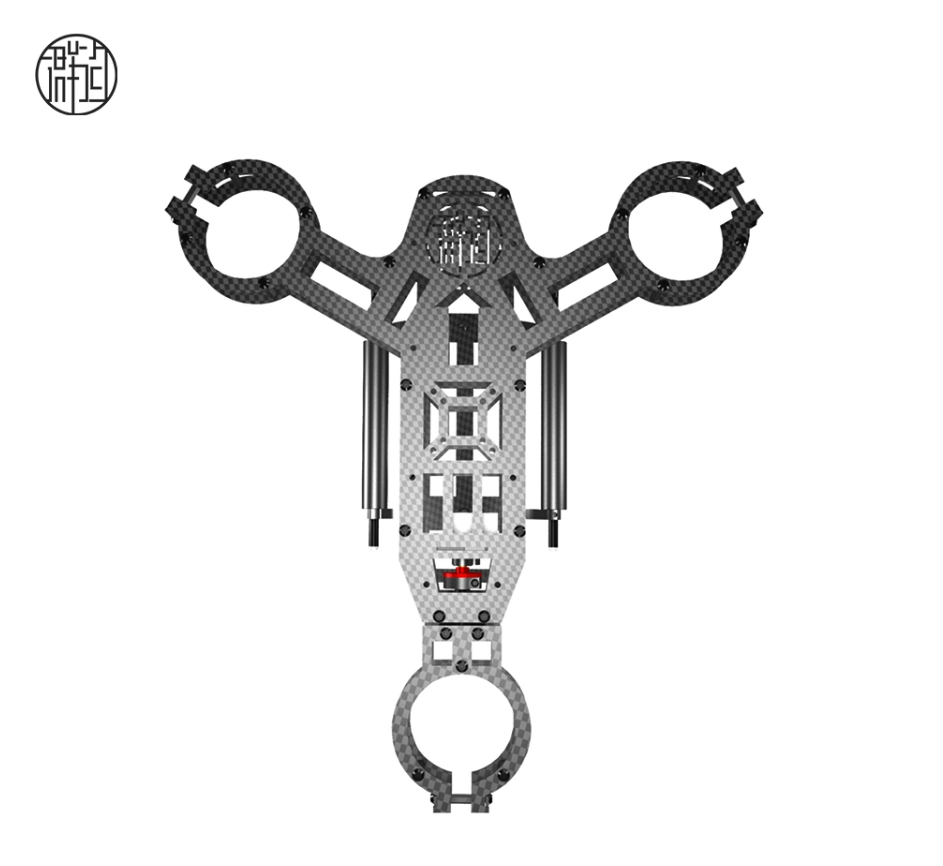

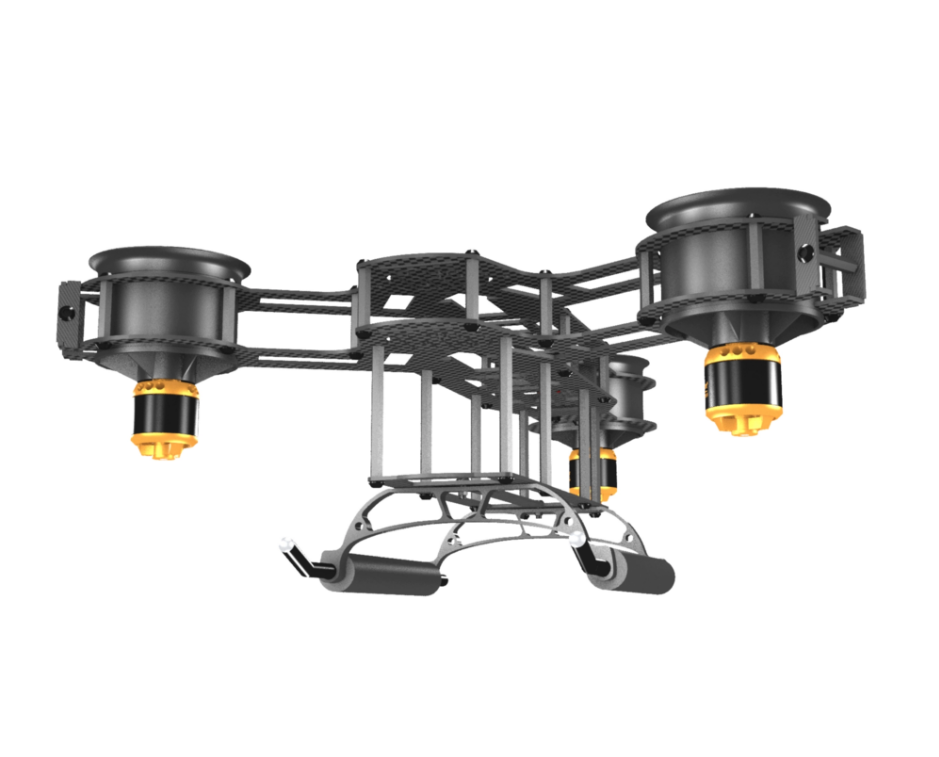

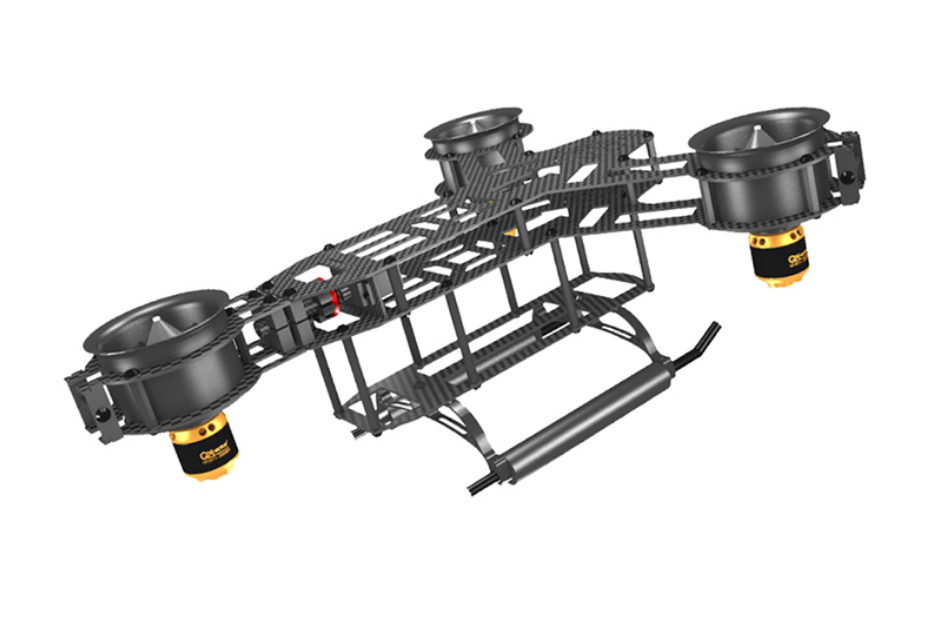

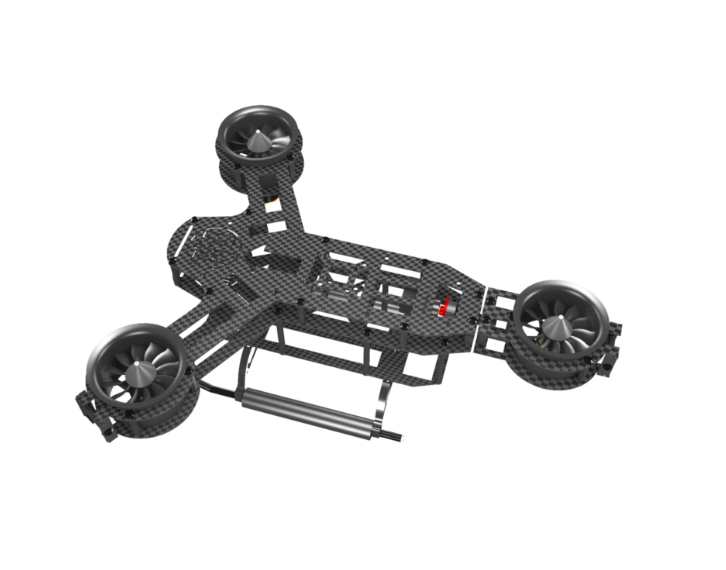

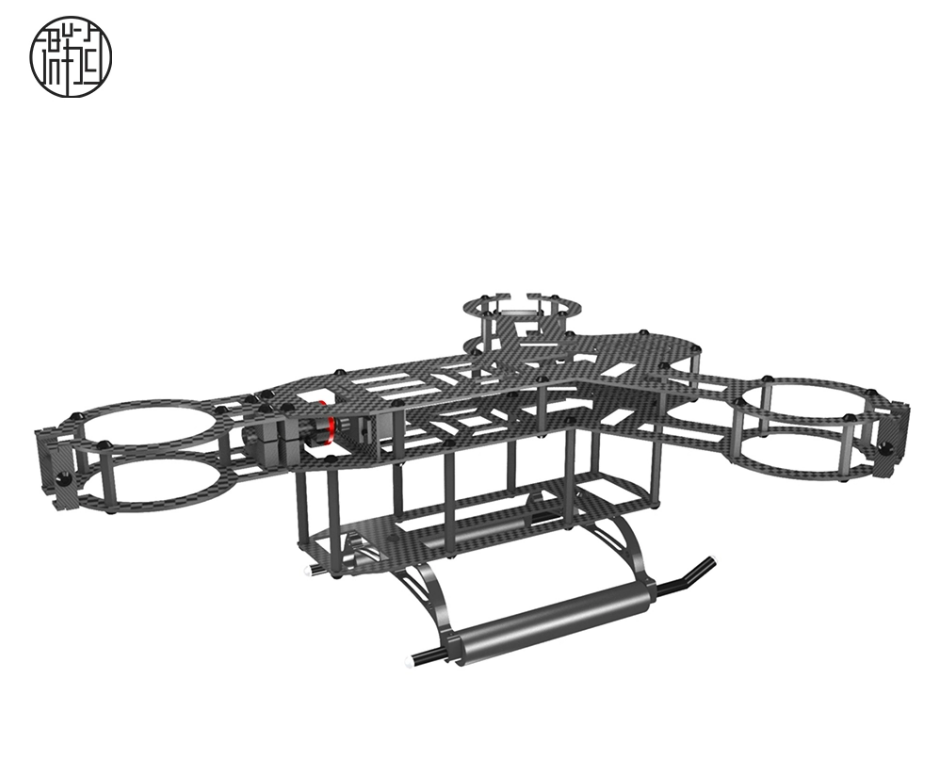

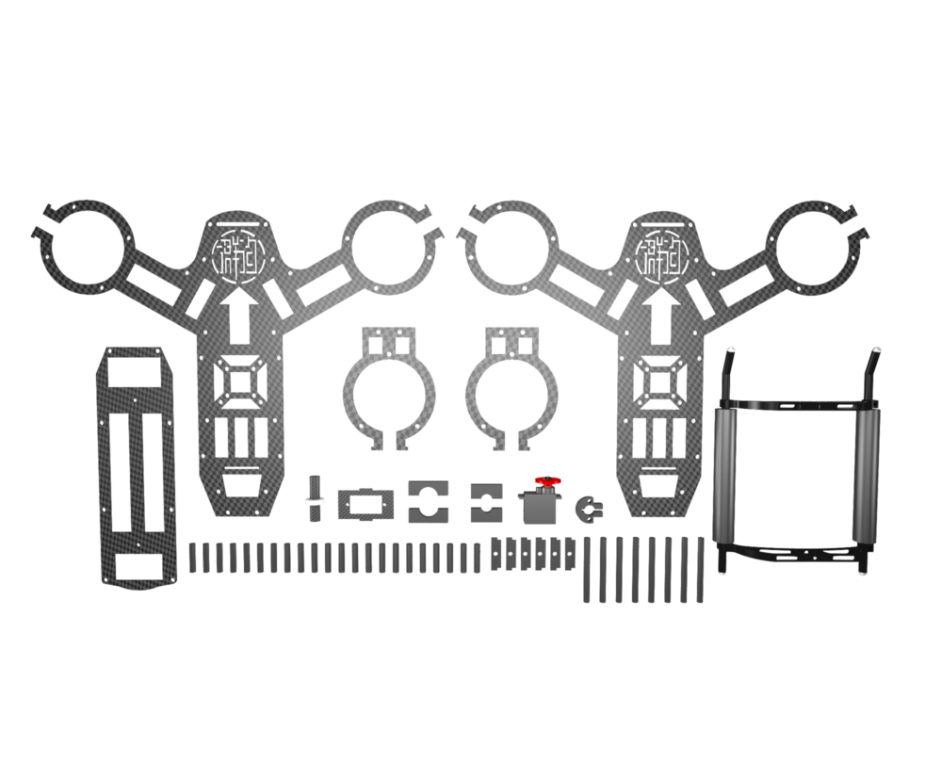

参 考 图
三旋翼套机1图片
